Public data mining shows extended linkage disequilibrium around ADAM33

Allergy 62 (4), 444–446.
doi:10.1111/j.1398-9995.2006.01298.x

The Allergy website seems to omit the online supplement. Please find the figures here.

If you wish to draw your own figure, download haploview 4 and import the data for Figure 1, Figure 2 and Figure 3 A|B

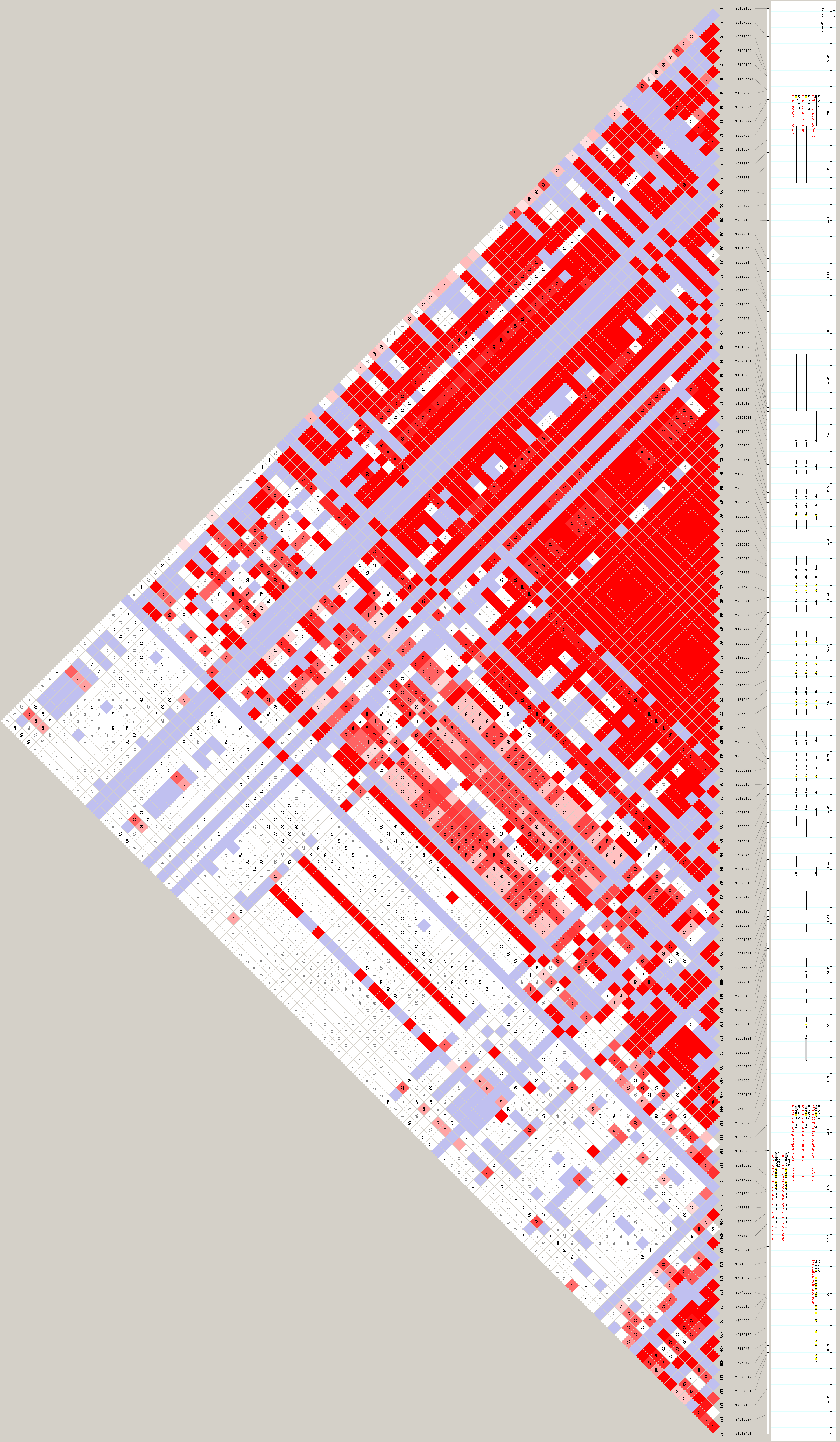

Figure 1

Pairwise linkage disequilibrium on a 270 kbp region on chr20 (3,430,000..3,700,000 bp) in CEU (European Hapmap) individuals. Note ADAM33 SNPs showing both upstream and downstream LD.

white color: LOD < 2 and D' < 1
blue: LOD < 2 and D' = 1
shades of pink/red: LOD ≥ 2 and D' < 1
bright red: LOD ≥ 2 and D' = 1

click to zoom in

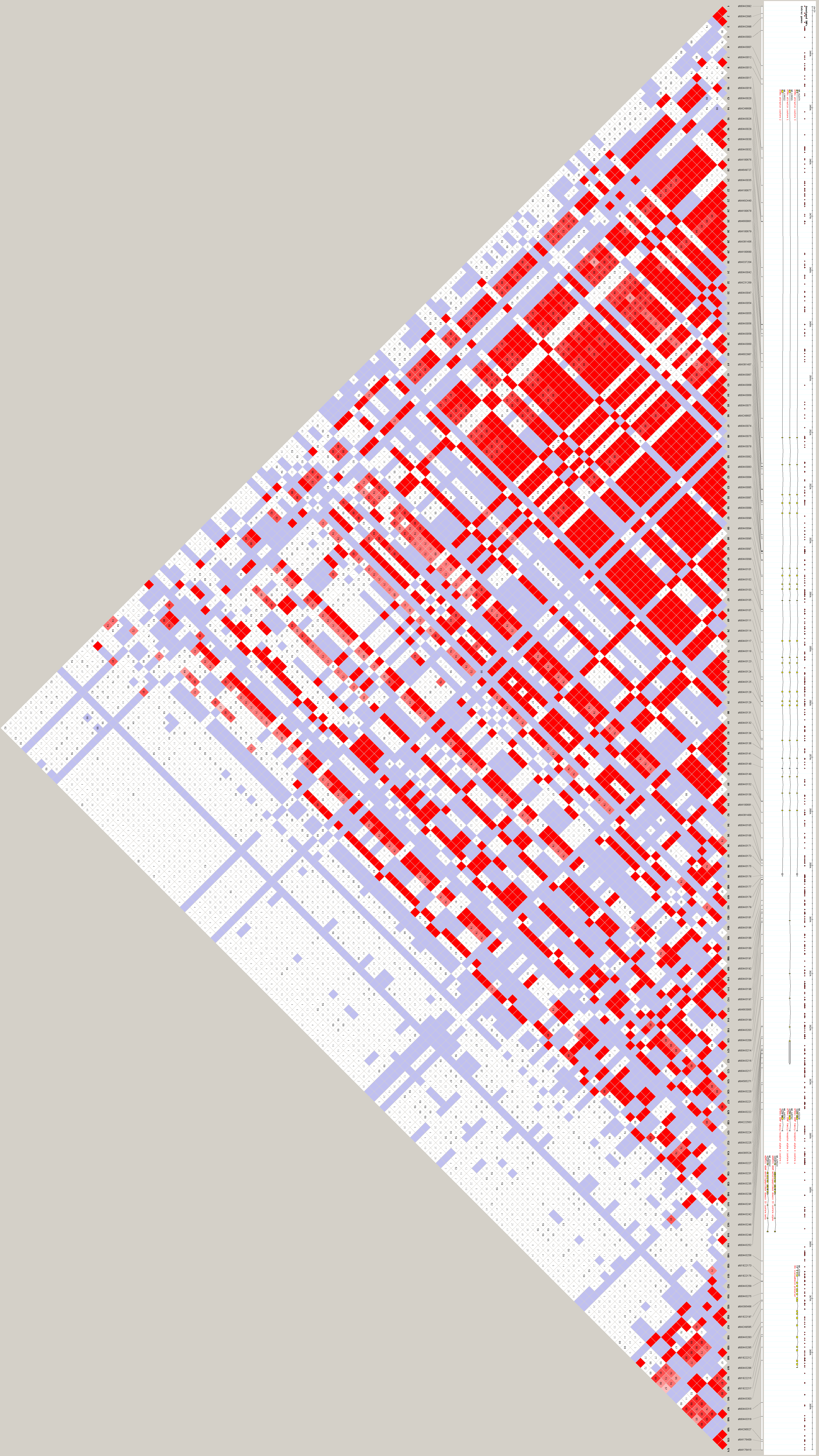

Figure 2

Pairwise linkage disequilibrium on a 270 kbp region on chr20 (3,430,000..3,700,000 bp) in CEU (European Hapmap) individuals in the Perlegen data set. Note the gap around ADAM33.

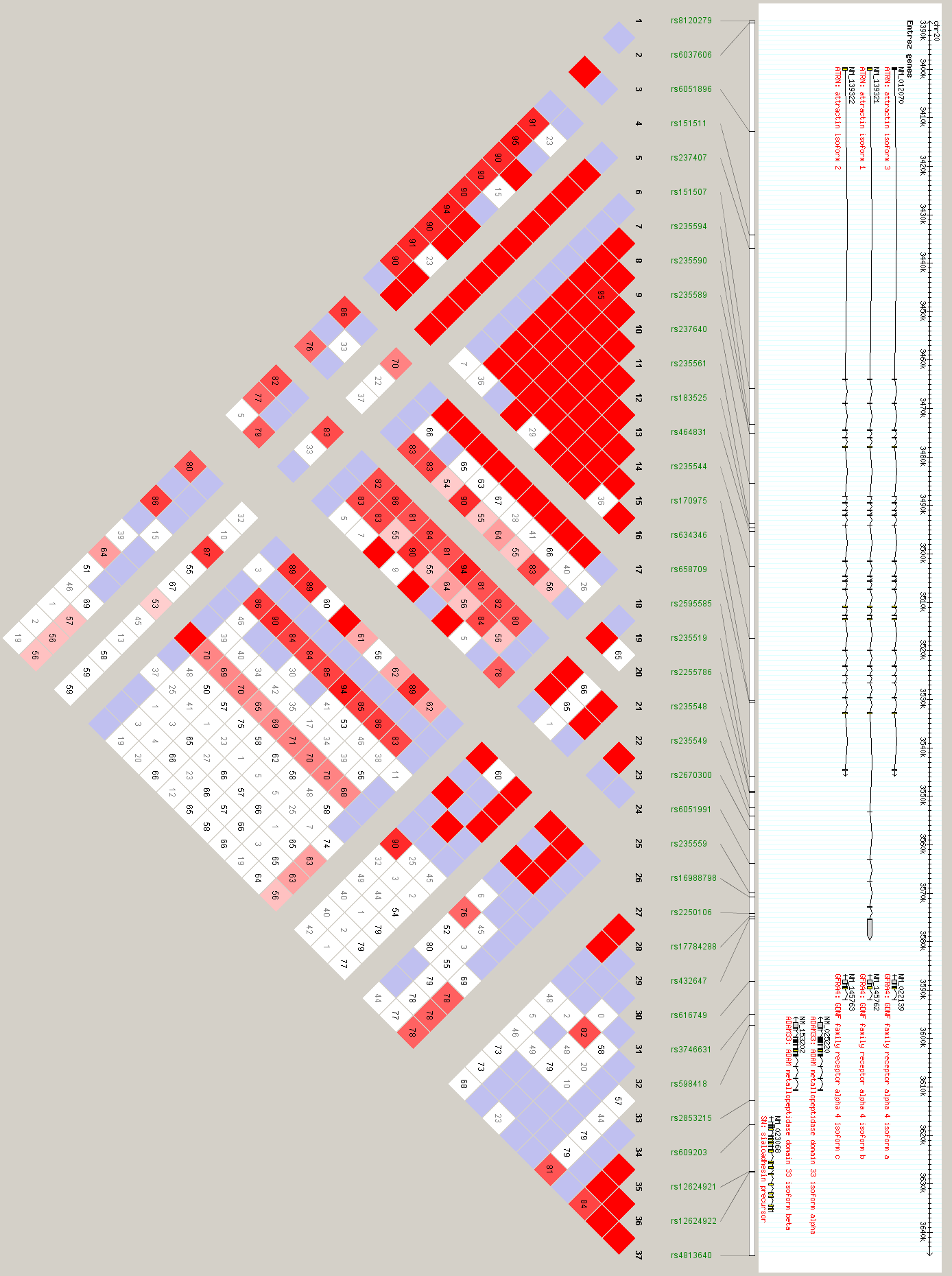

Figure 3

Pairwise linkage disequilibrium on a 260 kbp region on chr20:3,390,000..3,650,000 in European Hapmap individuals tested with Affymetrix 500 K SNP chips. Note the low resolution at ADAM33. SNP rs598418 shows LD to SNPs in ATRN and SN.

Addendum

NIEHS has resequenced ADAM33
